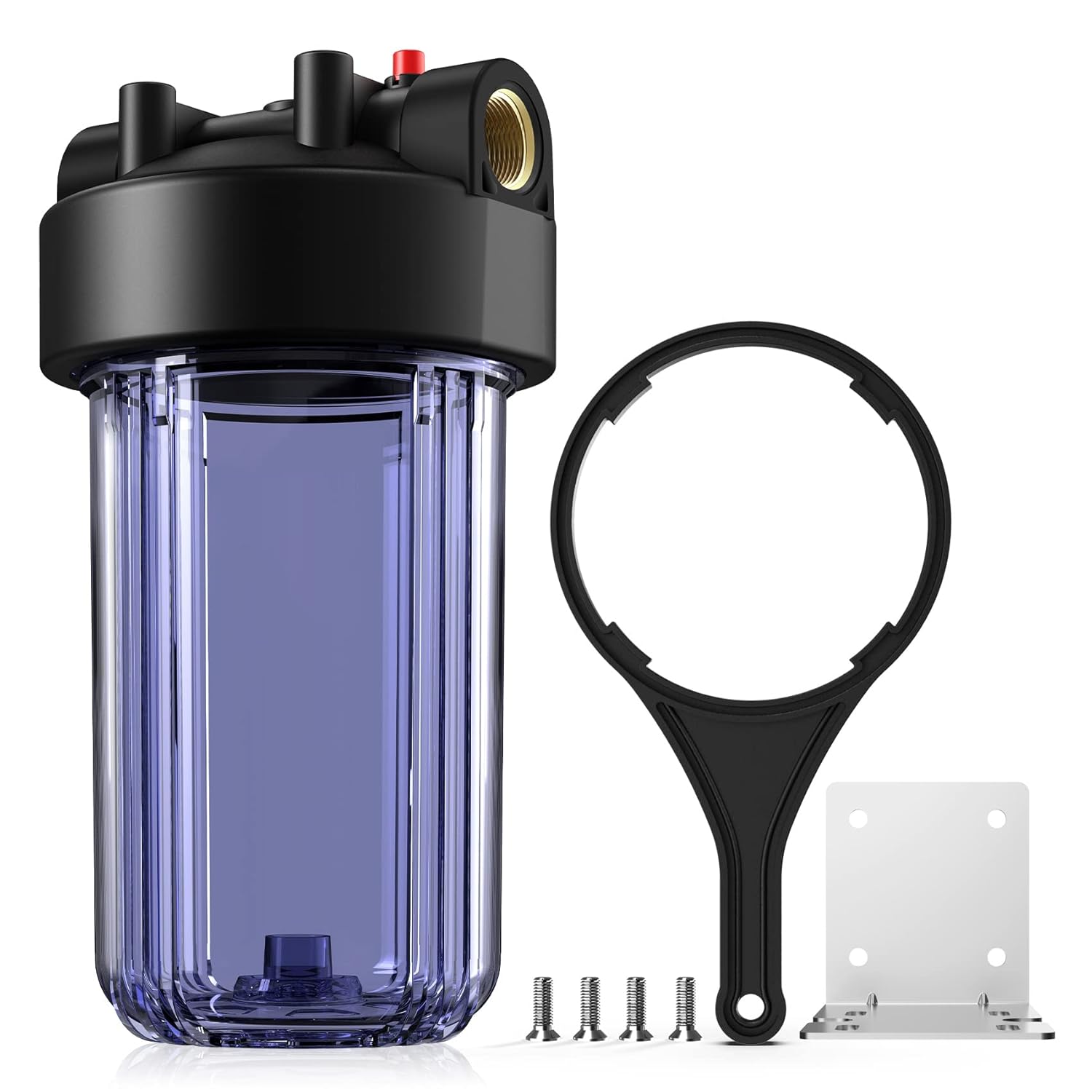

Big Clear Housing 4.5" x 10" 1" Brass Thread

Description

10" Clear Big Blue Filter Housing – Transparent Whole House Water Filtration

The 10" Clear Big Blue Filter Housing offers high-capacity water filtration with a transparent bowl that allows you to see the condition of the filter cartridge without opening the housing.

The clear design is ideal for homeowners and businesses that want visual confirmation of when a cartridge needs replacement. Ideal for sediment-heavy or iron-rich water, this housing provides powerful first-stage filtration for whole house systems using municipal or well water.

Built for durability and performance, the filter head features copper-threaded 1" NPT inlet and outlet ports that provide secure, leak-free connections and resist cross-threading or cracking. A built-in pressure relief button on the cap allows for easy air release when changing filters.

---

Key Features

• Clear see-through bowl allows for easy visual inspection of the filter cartridge
• Copper-threaded 1" NPT inlet and outlet ports for added strength and longevity
• Compatible with all standard 10" x 4.5" Big Blue filter cartridges (sold separately)
• Pressure relief button helps with hassle-free cartridge changes
• Made from durable, food-grade materials including a BPA-free clear bowl
• Includes mounting bracket, filter wrench, O-ring, and screws for easy installation

---

What's Included

• 10" Clear Big Blue Filter Housing (Clear Bowl and Cap)
• Filter Head with Copper Threaded 1" NPT Inlet/Outlet
• Filter Bowl Wrench
• Metal Mounting Bracket
• Mounting Screws (4)
• O-Ring (pre-installed)

Note: Filter cartridge is not included and must be purchased separately.

---

Technical Specifications

• Filter Cartridge Size: 10" x 4.5"
• Inlet/Outlet: 1" NPT Female (Copper-Threaded)
• Max Flow Rate: 20 GPM (76 LPM)
• Operating Pressure: 25–90 psi (170–620 kPa)
• Max Pressure: 90 psi (620 kPa)
• Temperature Range: 41–100°F (5–38°C)
• Bowl Material: Clear Styrene-Acrylonitrile (SAN) Plastic
• Cap Material: Food-grade Polypropylene
• pH Range: 6–11

---

Installation and Maintenance

Installation is simple using standard plumbing tools. Mount the housing securely to the wall with the included bracket and connect it to your plumbing using the 1" copper-threaded ports. Ensure that there is adequate clearance below the housing to facilitate easy filter changes.

We recommend replacing the filter cartridge every 6 to 12 months, depending on the quality of your water. As a preventive measure, consider replacing the filter bowl every five years to avoid wear-related issues.

For best results, flush the system for 10 minutes after installing a new cartridge and check for any leaks before regular use.

---

Applications

• Whole-house sediment and particulate removal
• Pre-filtration for UV, reverse osmosis, or carbon filtration systems
• Homes on well water or a chlorinated municipal supply
• Protects water heaters, dishwashers, washing machines, and fixtures

---

Important Notes

• For cold water use only
