Carbon Whole House Backwash Filter CWS Manual 1.0 CF 9x48
- Description
- Specs
- Warranty
- Info
- Documents

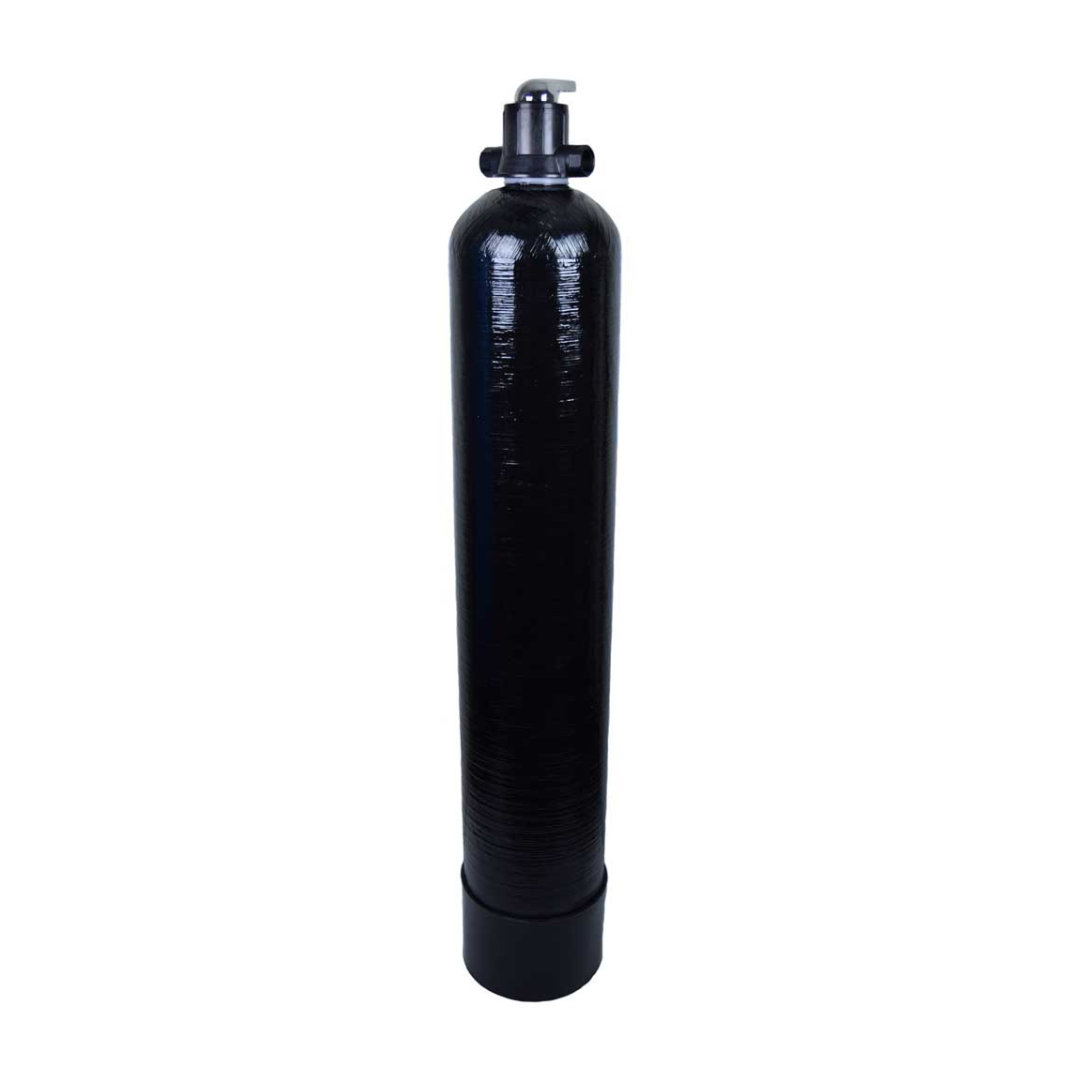

Whole House Activated Carbon Filter Non-Electric Manual Backwash
- Removes chlorine tastes and odors without electricity or power.
- Removes sediment, easy to backwash and rinse media clean of sediment with manual valve.
- All the filter media you need for the system is included.
- Excellent for use in dechlorinating water and removing many tastes and odors.
- Much longer life and higher flow rates than carbon filter cartridges.
- Unlike carbon cartridges which can trap sediment and dirt causing pressure drop these systems can backwash out trapped sediment alleviating pressure drop.
- Filter tank is certified one piece seamless polyester construction for long life.
- Rugged Ceramic Disc manual backwash control lasts for many years.
- Manually operated valve is easy to operate. Just turn to backwash filter media.
- Non-corrosive high-tech material construction.
- Manual control valve is easy to operate; just move lever to move to a backwash and then rinse position.
- Includes In-Out backwash control valve with 1" in, out and drain connection
- High Grade Coconut Shell Certified Activated Carbon Filter Media
Weight: 80.00 lbs
Sizing Guide
| Model | Number of Bathrooms in Home | Flow Rate | Backwash Flow Rate | Dimensions |
| 0.50 CF | 1 | 5 GPM | 4 GPM | Diameter: 6" Height: 41" |
| 0.75 CF | 1 - 2 | 5 GPM | 5 GPM | Diameter: 8" Height: 50" |
| 1.0 CF | 1 - 2 | 8 GPM | 5 GPM | Diameter: 9" Height: 52" |
| 1.0 CF Short | 1 - 2 | 8 GPM | 5 GPM | Diameter: 13" Height: 37" |
| 1.5 CF | 1 - 2 | 12 GPM | 5 GPM | Diameter: 10" Height: 60" |
| 2.0 CF | 2 - 3 | 14 GPM | 7 GPM | Diameter: 12" Height: 58" |
| 2.5 CF | 2 - 4 | 16 GPM | 10 GPM | Diameter: 13" Height: 60" |
| 3.0 CF | 2 - 5 | 18 GPM | 12 GPM | Diameter: 14" Height: 72" |
Technical Specifications:
- No power required. Backwash and rinse using manual control valve..
- certified filter tank with one piece seamless construction for very long life
- High Grade Coconut Shell Certified Activated Carbon Filter Media
- Manual backwash and rinse at least once a week is recommended.
- 1" NPT in - out - drain connections
- Max pressure recommended: 100psi
- Max temperature recommended: 100F
- 10 year Warranty on the filter tanks. All tanks are Certified & top quality.
- 5 Year Warranty on the control valve. Made in the U.S.A.
- 90 Day money-back guarantee less 25% Restocking Fee
- See our Return Policy Here
More Info:
- 90 DAY NO-HASSLE RETURN GUARANTEE.
- Try it, and if you are not 100% satisfied, return for your money back, less shipping costs.
- Easy to Install. Complete Instructions included.
- Install yourself or hire a handyman.
- Anyone familiar with basic plumbing can easily install system.
- We are here to help. Any questions? Email us at [email protected] or call us.
