Luminor LBH4-Z122 Blackcomb Trio Rack Mount UV Water Purifier 15 GPM

Luminor LBH4-Z122 Blackcomb Trio Rack Mount UV Water Purifier 15 GPM
Processing...
Code: UV002880

$1,795.00 $1,895.00 List Price


In Stock!


Overview

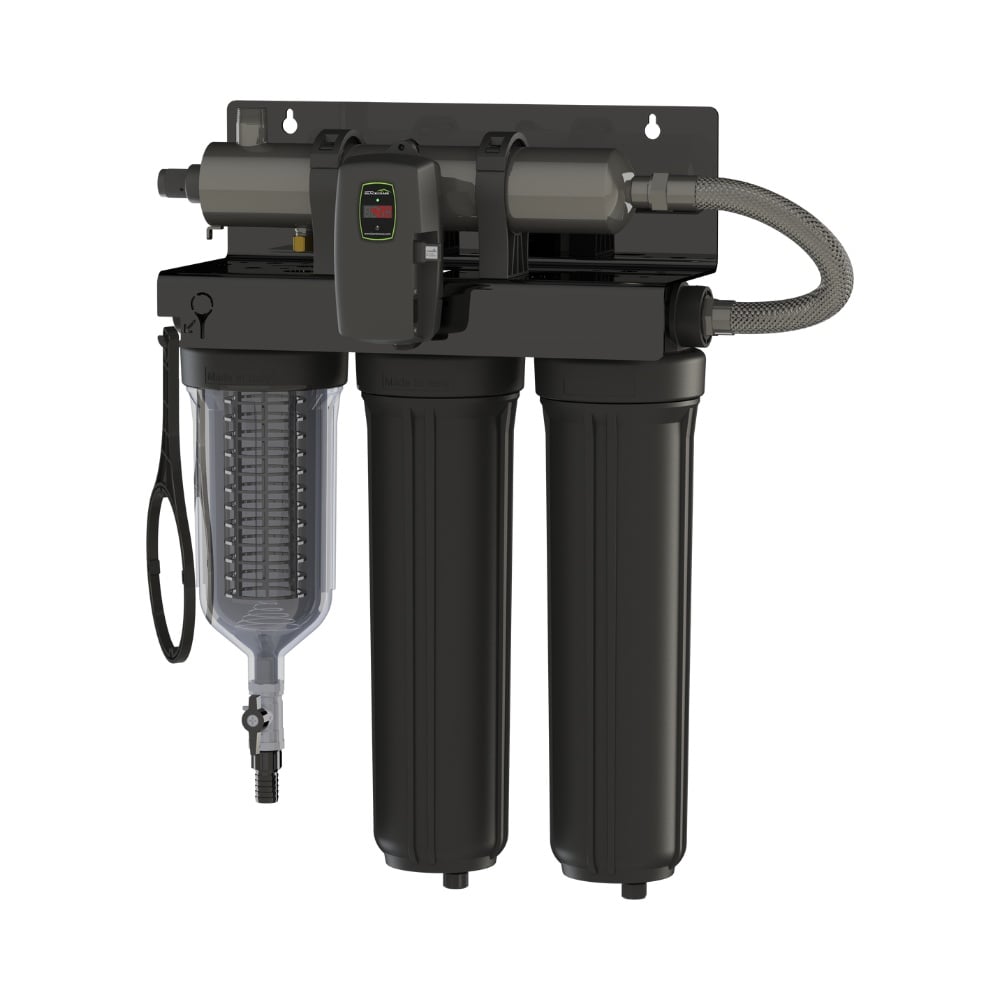

Luminor Blackcomb Trio LBH4-Z122 UV Filter System with Mesh Strainer and two 4.5" x 20" Filter Cartridges.  Flow Rate 15 GPM


Ensure your family's safety from microbiological threats like E. coli and coliform bacteria with the premium LUMINOR BLACKCOMB-HO 4.1 LBH4-Z122 UV System. Designed for whole home, cottage, or cabin use, this high output UV system offers unparalleled disinfection.

The comprehensive filtration package includes one 10" mesh strainer, two 20" standard water filter housings, one 4.5" x 20" 50/5 micron filter, one 4.5" x 20" 25/1 micron filter, and the ultraviolet water disinfection cylinder.

Read Full Description


  • Description
  • Specs
  • Warranty
  • Info
  • Documents

Luminor Blackcomb Trio LBH4-Z122 UV Filter System with Mesh Strainer and two 4.5" x 20" Filter Cartridges.  Flow Rate 15 GPM


Ensure your family's safety from microbiological threats like E. coli and coliform bacteria with the premium LUMINOR BLACKCOMB-HO 4.1 LBH4-Z122 UV System. Designed for whole home, cottage, or cabin use, this high output UV system offers unparalleled disinfection.

The comprehensive filtration package includes one 10" mesh strainer, two 20" standard water filter housings, one 4.5" x 20" 50/5 dual grade micron filter, one dual-grade 4.5" x 20" 25/1 micron filter, and the ultraviolet water disinfection cylinder with controller.

Made in Canada for long-lasting reliability, this system also features a lamp countdown timer to remind you when it's time to replace the lamp.

With an extended lamp life of 10,000 hours or 420 days, the system ensures fewer replacements. Audible and visual alarms alert you for lamp changes and Lamp Out conditions.

The DIY installation and maintenance are designed to save you money, while the durable construction with a heavy gauge 316L stainless steel manifold ensures long life.

The versatile plumbing connections with 1” MNPT inlet and outlet make installation flexible, and the system operates efficiently, consuming only 57 watts.

The system comes with a robust warranty of 10 years on the SS reactor, 3 years on electronics, and 1 year on the UV lamp and sleeve.

Replacement parts include the RL-420HO lamp, the RQ-420 sleeve, and the RCHO-4.12 controller.

The package also includes one 4.5" x 20" 50/5 micron filter and one 4.5" x 20" 25/1 micron filter.


Kill bacteria, giardia and cryptosporidium and filter down to 1 micron with one of the most advanced UV sterilizers on the market.

The LBH4-Z122 is a premium  small commercial system offers a high 15 gallon per minute system with 30mj/cm2 which gives you one of the most powerful UV systems in the industry.  Unique single-end design simplifies lamp replacements.

Low Pressure Drop.   Includes controller that monitors lamp life!

10 Year Warranty on commercial grade 316 stainless steel body.

3 Years on Electronics.  1 Year on Lamps.

Features

  • Easy mounting
  • Axial flow 316L stainless steel reactors for optimum fluid dynamics
  • Designed and manufactured to ASME pressure vessel standards
  • Low pressure high-output (LP-HO) coated UV lamps for increased power density and consistent UV output throughout the rated lamp life of 10,000 hours
  • Color user interface with full diagnostics and warnings including QR codes
  • IEP (infinite expandability port) for future upgrades and options
  • Voltage 115 - 240V 50/60 Hz



Specifications:

Construction Material: 316L Stainless Steel

Dimensions: 3.5" x 20.0"

Frequency 50-60 Hz

Maximum Gallons Per Minute:  15

Inlet/Outlet: 1" MNPT

Plug:North American NEMA 5/15

Spectrum: 254nm

Volts: 90-240

Watts: 57

Warranty: 10 Years

Change Lamp every 10,000 hours.

Water Quality Parameters Treated water should be tested for at the least the parameters listed below. If the water exceeds the listed parameters LUMINOR strongly recommends that appropriate pretreatment equipment be installed (equipment required will depend on parameters being treated):

Hardness: <7 gpg (120 mg/L) – if hardness level is 7 gpg or slightly below the quartz sleeve must be cleaned periodically in order to ensure efficient UV penetration; if above the water must be softened.

Iron (Fe): <0.3 ppm (0.3 mg/L)

Manganese (Mn): <0.05 ppm (0.05 mg/L) Turbidity: < 1 NTU

Tannins (organics): <0.1 ppm (0.1 mg/L)

Transmittance (UVT) < 75%



Limited Warranty Statement by LUMINOR Environmental Inc. (LUMINOR)

General Warranty Information:
Products manufactured by LUMINOR are warranted to the original user to be free of defects in material and workmanship for specified periods. This warranty is exclusive to the original purchaser and is non-transferable.

Warranty Periods:

  1. UV SYSTEMS:

    • Ten (10) year Limited Warranty on the stainless steel reactors.
    • Valid from the date of original purchase or installation (proper documentation required for verification).
  2. ELECTRONICS:

    • Three (3) year Limited Warranty on the ballasts and controllers.
    • Valid from the date of original purchase or installation (proper documentation required for verification).
  3. UV LAMPS, UV SENSORS & QUARTZ SLEEVES:

    • One (1) year Limited Warranty on all LUMINOR ultraviolet lamps, UV sensors, and quartz sleeves.
    • Valid from the date of original purchase or installation (proper documentation required for verification).

Warranty Coverage:
LUMINOR commits to repair, replace, or refund (at LUMINOR’s discretion) any ultraviolet system or component found defective in materials or workmanship within the outlined warranty periods. This is subject to the “Limitations of Warranty” detailed below.

LUMINOR's liability is restricted to repairing or replacing, without charge, any product they manufacture. This is done F.O.B. at LUMINOR’s factory or an authorized service depot. LUMINOR will not cover any costs related to removal, installation, transportation, or other charges that may arise due to a warranty claim.

Products sold but not manufactured by LUMINOR fall under the warranty provided by the respective product's manufacturer, not under LUMINOR’s warranty. LUMINOR is not responsible for damages or wear caused by abnormal conditions, accidents, misuse, unauthorized alterations or repairs, or if the product wasn't installed following LUMINOR’s guidelines.

Limitations of Warranty:
This warranty does not cover:

  • Water Quality Parameters outside these ranges:

    • Hardness > 120 mg/L (7 gpg)
    • Iron > 0.3 mg/L (ppm)
    • Manganese > 0.05 mg/L (ppm)
    • Tannins > 0.1 mg/L (ppm)
    • Turbidity > 1 NTU
    • Transmittance (UVT) < 75%
  • Incorrect installation as per the owner's manual.

  • Modifications not approved by the manufacturer.

  • Altered, defaced, or removed serial numbers.

  • Use of non-original or unauthorized parts.

  • Damage during product shipment.

  • Water damage inside ballast housing or controllers.

  • Outdoor installation exposed to direct environmental elements.

  • Installation in freezing temperatures.

  • Usage exceeding LUMINOR’s specifications.

Manufacturer: Luminor

Manufacturer #: LBH5-151

Installation Manual
