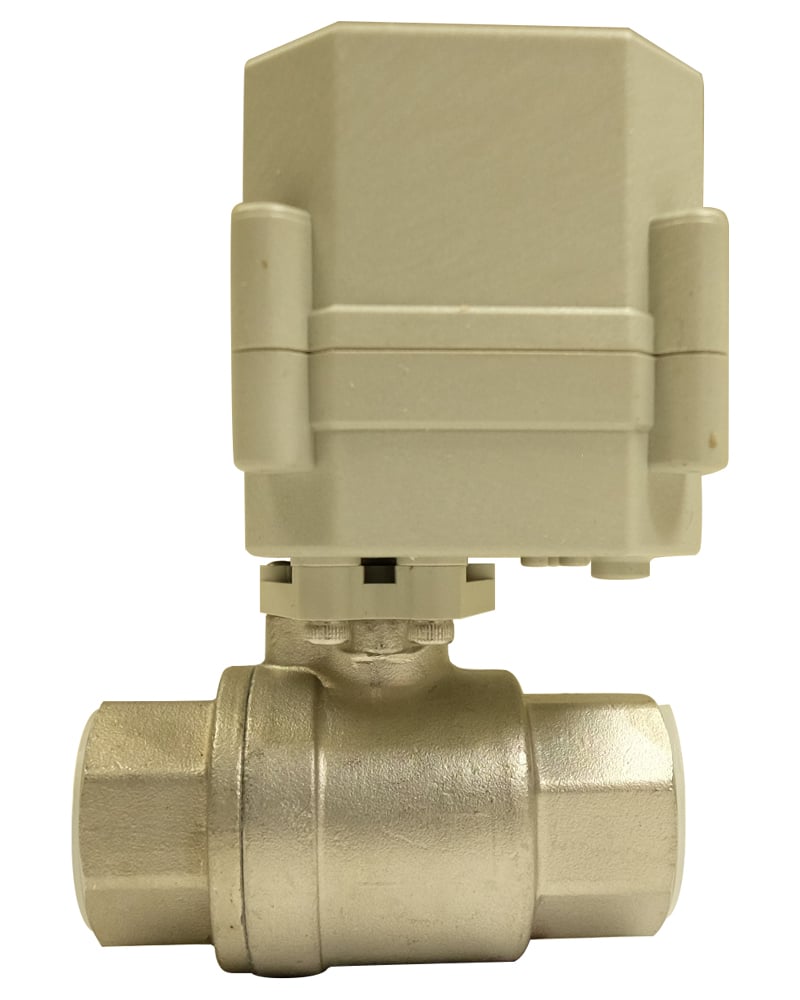

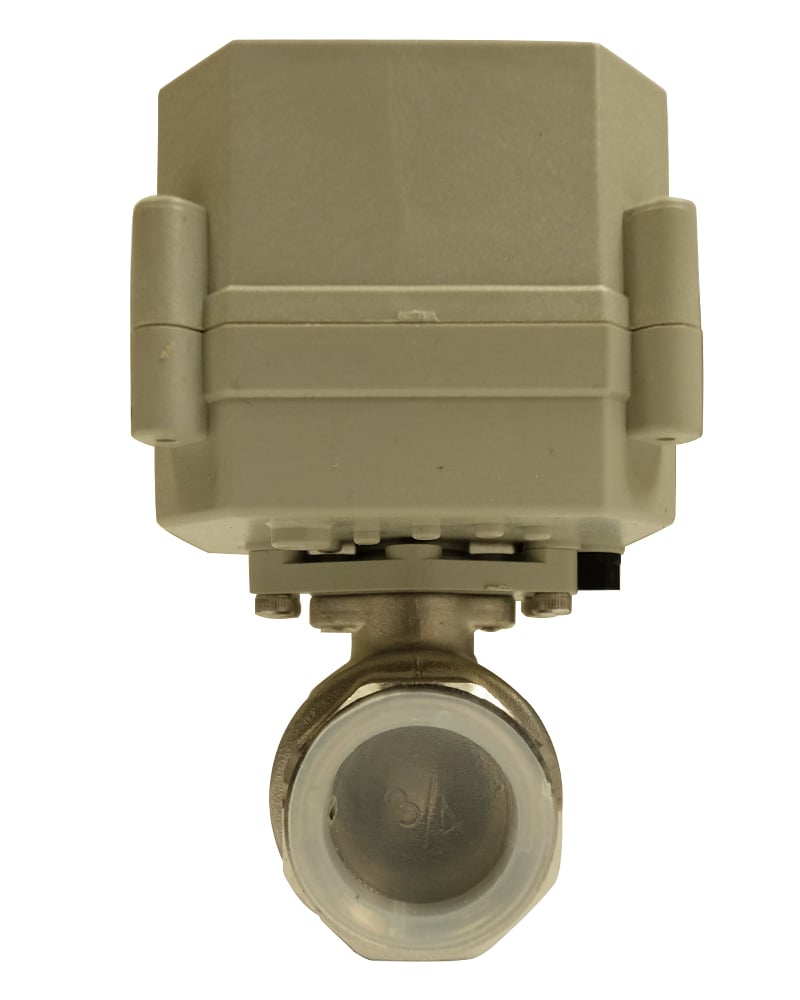

Motorized Stainless Steel Ball Valve & Timer, 3/4" 110-220V
This heavy-duty stainless steel automatic drain and flush valve is ideal for automatically purging sand separators, spin-down filters, sediment traps, and other water treatment equipment. The built-in programmable timer opens and closes the valve on a schedule, helping remove accumulated sediment without manual draining.
Automatic Flushing for Sand, Sediment, and Filter Systems
Instead of manually opening a drain valve to flush sediment, this motorized stainless steel ball valve can be programmed to open and close automatically. It is especially useful for applications where sand, grit, rust, or sediment must be periodically purged from a filter or separator.
Use it as an automatic drain-down valve for sand separators, Rusco-style spin-down filters, sediment filters, and other water treatment systems that benefit from regular flushing.
Best Uses
- Sand separators
- Rusco spin-down filters
- Backwash and flush applications
- Sediment filter drain lines
- Well water systems with sand or grit
- Automatic purge applications
- Water treatment drain-down systems
- Light commercial water filtration systems
Important Electrical Note
No plug is provided. This valve has two electrical leads and works with either 110V or 220V power. It may be hardwired or connected using your own plug or cord as appropriate for your installation.
Product Video
Features and Advantages
- Heavy-duty motorized stainless steel ball valve
- 3/4" NPT female threaded connections
- Built-in programmable timer control
- Excellent for automatic flushing and drain-down applications
- Great for sand separators and spin-down filters
- Helps reduce manual maintenance
- Works with 110V or 220V power
- No external transformer required
- Fast 7-second open/close operation
- Power backup saves timer settings during power outages
- IP67 / NEMA 6 rated protection against dust and water
Specifications
| Valve Material | 304 Stainless Steel |
| Pipe Size | 3/4" NPT Female Thread |
| Voltage | 110V or 220V, 50/60 Hz |
| Current Draw | 0.5 amp / 500 mA |
| Open/Close Time | Approximately 7 seconds |
| Maximum Pressure | 1.0 MPa / 145 PSI |
| Ambient Temperature | 5°F to 120°F |
| Liquid Temperature | 35°F to 190°F |
| Rated Life | Estimated 70,000 open/close cycles |
| Environmental Rating | IP67 / NEMA 6 Rated |

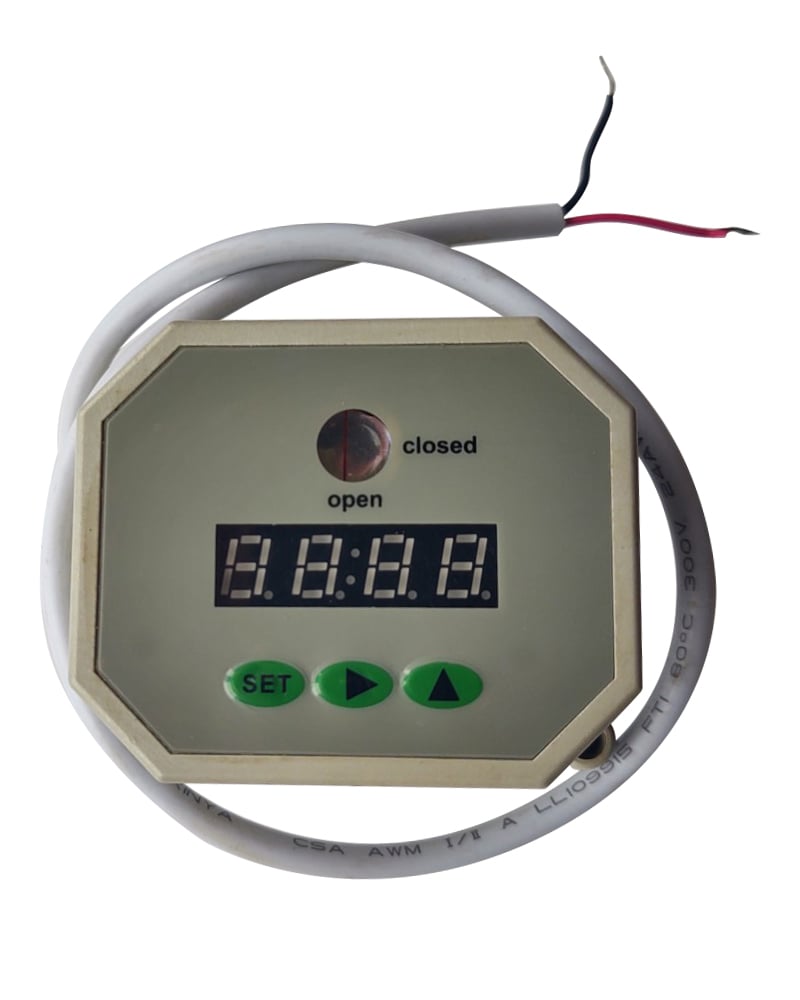

Timer Control Range
The timer allows the valve to stay open or closed from 00:00:00 up to 99 hours, 59 minutes, and 59 seconds. For example, the valve can be programmed to open several times per day for a short flush cycle, or for longer drain cycles depending on the application.
The built-in power backup saves timer settings during power outages. Current clock time is saved for up to 7 days, and other parameters are saved for up to 30 days.
Frequently Asked Questions
What is this valve used for?
It is used to automatically open and close a drain or flush line. Common uses include flushing sand separators, spin-down filters, sediment traps, and other water treatment equipment.
What size connections does this valve use?
This model features 3/4" female NPT threaded connections.
Does it come with a power cord or plug?
No. This valve does not include a plug. It has two leads and can be hardwired or connected to your own plug or cord.
Does it work on 110V or 220V?
Yes. The valve is dual voltage and works with either 110V or 220V power.
Can it be wired into a 220V well pump circuit?
Yes, in many applications it can be wired into a 220V well circuit. It uses only 0.5 amps. Always follow local electrical codes and use a qualified electrician when needed.
How fast does the valve open and close?
The open/close time is approximately 7 seconds.
Will it remember the timer settings after a power outage?
Yes. The built-in backup saves the current clock time for up to 7 days and saves other timer parameters for up to 30 days.
Is it suitable for outdoor or wet locations?
The valve is rated IP67 / NEMA 6, meaning it is protected against dust and water. However, electrical connections should always be made in a safe, code-compliant manner.
Can I use this for drinking water applications?
Yes. The valve is listed as ANSI certified for drinking water applications.
