Description

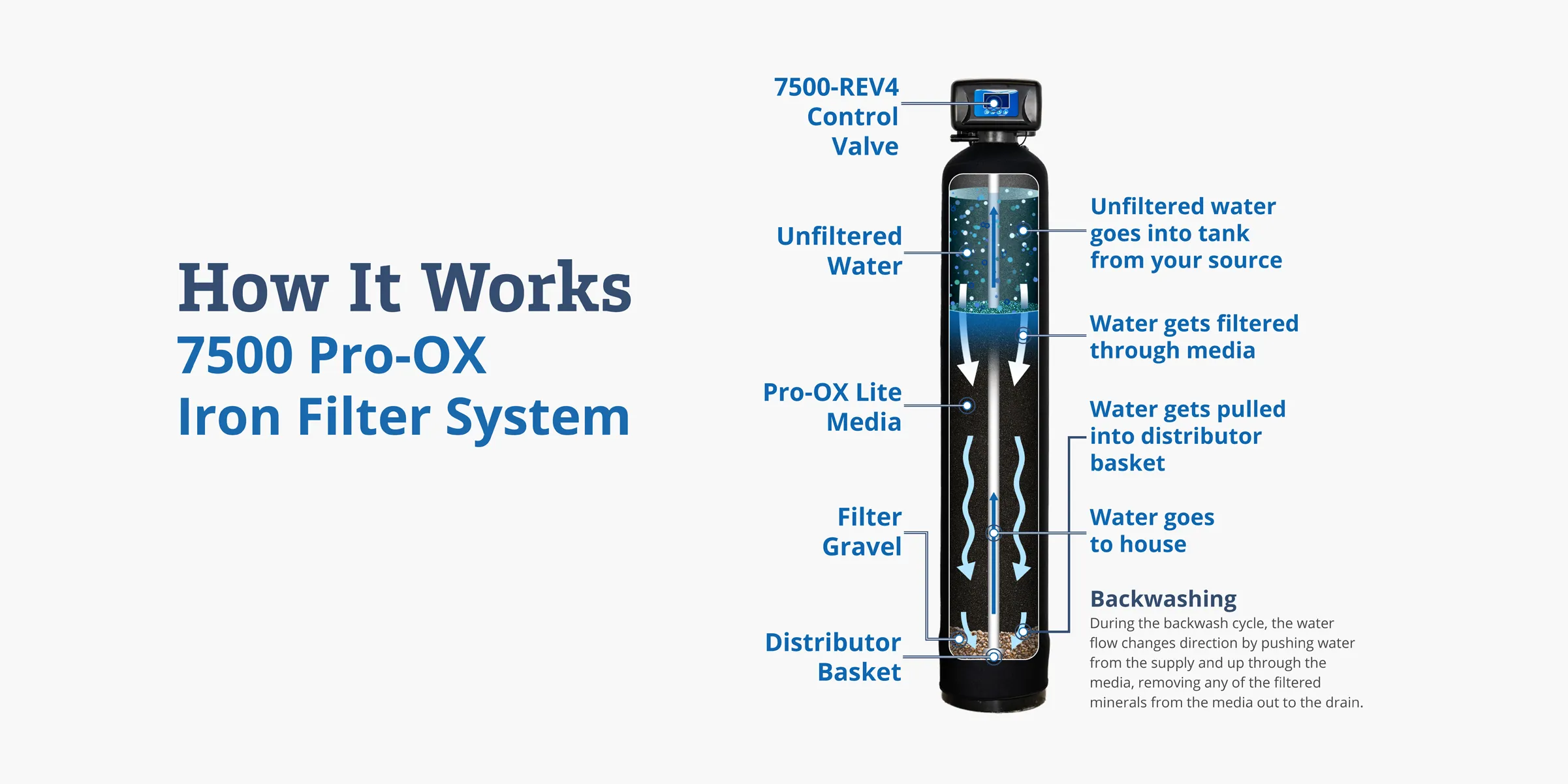

Pro-OX Lite 7500 Advanced Iron Filter Systems
Remove Iron and Manganese from Well Water
- Pro-OX 7500 Lite iron filters are a robust system for removing iron, manganese, rust, and sediment from well water
- Corrosion-proof ceramic disc auto backwash valve lasts years longer than standard piston-type control valves and can backwash over 150,000 cycles
- Customers report many years of service, and the media is easy to replace.
- The media works down to pH 6.2; we recommend pH 7.0 or higher for best results.
- Pro-OX Lite: lightweight manganese dioxide filter media (12.5% MnO2), made in Texas with NSF/ANSI 61-certified Pyrolox Advantage media.
- Easily High iron needs careful design. Send us your water test, and we'll build the right system around your water and how you use it. We recommend this system for up to 5 ppm iron. Higher removal rates are possible depending on water chemistry. With the AIR option, we recommend this system for up to 8 ppm iron. With the Ozone option, we recommend this system for up to 10 ppm iron, plus sulfur odor and iron bacteria.
- Optional: AIR upgrade (above) or chlorine. Considering hydrogen peroxide for sulfur odor? We recommend a contact tank after the peroxide injection, then a catalytic carbon filter ahead of the iron filter to remove leftover peroxide.
- Backwashes are based on the time (days of the week) or gallons used. More efficient backwashes that use less water
- Automatic program recall after power outages and maximum day regeneration functions
- Exceptional High Flow Rate with noticeable noise reduction during regeneration.
- NSF-certified, one-piece, seamless poly filter tank for long life
- Pro-OX Lite media is manufactured in Texas to highest quality standards, not imported
- Voltage 110v-230V Power Adapter. Control valve 12VDC. Uses less than 20 watts of power
Frequently Asked Questions
The spindown filter will remove any sand or grit that may be in your well water and protect the iron filter. Even though it is not affected by sand like other piston and seal type control valves, it is good to keep sand out of your Pro-OX Lite iron filter.
Another advantage is that it can be used to sanitize your Pro-OX Lite iron filter with chlorine bleach if you have iron bacteria. By adding a cup of bleach once a year to the spindown filter, and turning the water back on, the Pro-OX Lite media can be cleaned and sanitized. It only takes a few minutes and no chlorine gets in the house, as the filter is then put into backwash after sanitizing.
The tank needs to be 44” in height minimum to use the air charger kit. So yes if the tank you choose is larger then that.
Most of our customers do install themselves, however it is easy for any plumber or handyman to install. Ordering the optional flex lines makes it very easy to hook up to your piping.
If you use the optional air charger kit, the air injector will need to be cleaned once or twice a year. This takes about 10 minutes and requires no special tools. There is no other maintenance required.
There is little or no maintenance required. If your water has iron bacteria you can add some chlorine bleach in the optional spindown filter and turn the water back on and clean the Pro-OX Lite media with chlorine, once or twice a year. This will remove any iron bacteria film and restore the Pro-OX Lite media. Many customers however go years with no maintenance.
No. The pressure drop at maximum flow rate is around 10 PSI. At regular flow rates such as used in the home, the pressure drop is 1 or 2 PSI and is not noticeable.
Your well produces a maximum amount of gpm. Many wells are less than 10 gpm, and you size the filter to match your available flow rate.
If you have a submersible pump with a pressure tank and switch, use this link to find your available flow rate.
Flow Rate Calculator
Specifications
Installation Guides
- Pro-OX Lite (standard) Installation Guide (PDF)
- Pro-OX Lite with Air Upgrade Installation Guide (PDF)
- Pro-OX Lite with Ozone Upgrade Installation Guide (PDF)

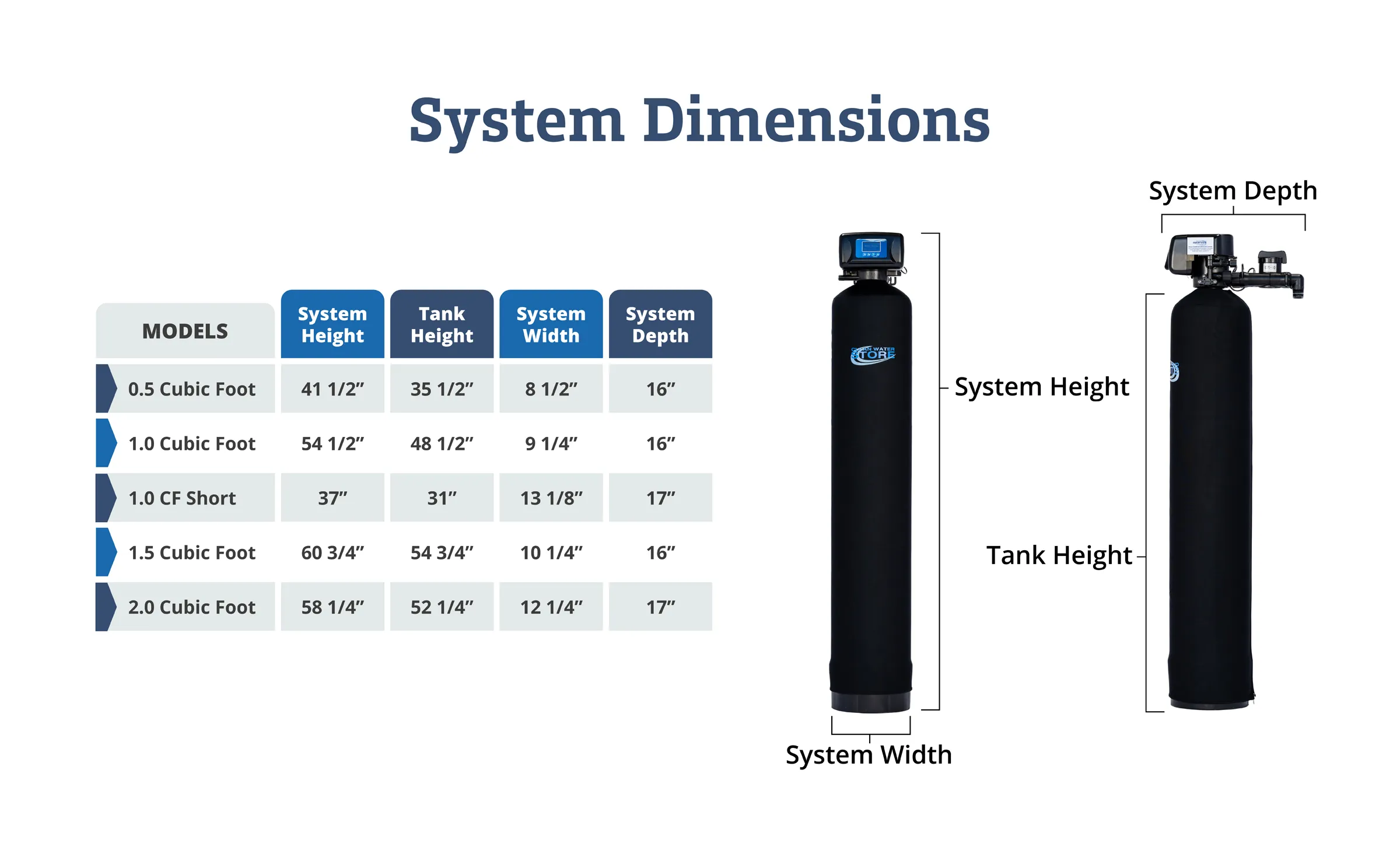

Sizing Guide
| Model | Bathrooms | Peak flow (GPM) | Backwash Flow Rate (well must supply) | Dimensions |
| 0.75 CF | 1–2 | 6 | 5 GPM | Diameter 8" x Height 50.1" |
| 1.0 CF | 2–3 | 8 | 7 GPM | Diameter 9" x Height 54.4" |
| 1.0 CF short | 2–3 | 8 | 12 GPM | Diameter 13" x Height 37" (short tank) |
| 1.5 CF | 3–4 | 10 | 7 GPM | Diameter 10" x Height 60.7" |
| 2.0 CF | 3–5 | 14 | 10 GPM | Diameter 12" x Height 58.6" |
| 2.5 CF | 4–6 | 17 | 12 GPM | Diameter 13" x Height 60.5" |
Important Sizing Note: Proper system sizing depends on iron level, well pump capacity, and available backwash flow rate. Homes with high iron, manganese, sulfur odor, iron bacteria, or higher-than-average water usage may require a larger system or pre-oxidation. Your well pump must be capable of supplying the minimum backwash flow shown above for proper media cleaning and long-term performance.
Maximum Working Pressure: 100 PSI | Operating Temperature Range: 34°F – 110°F
Warranty
Warranty:
- Lifetime Warranty on the filter tanks.
- 5 Year Warranty on the control valve.
- See our Return Policy Here
Info
Includes:
Advanced Features:
Satisfaction Guarantee: Complete water treatment systems can be returned within 6 months — even if used — if you're not satisfied. Parts can be returned unused in original packaging within 90 days (25% restocking fee). Return shipping is the customer's responsibility. See full return policy.
