Stainless Steel Water Filter Housing 10" 1" NPT Fits 2.5" x 10" Cartridges
Frequently Bought Together
Code: F1012370
$12.00
Code: O2001090
$17.00
Code: G1006300
$12.00
Code: H1004890
$22.00Price Total
Description
specs
warranty
Documents
Description
Stainless Steel Water Filter Housing – 10" Standard
A heavy-duty stainless steel water filter housing designed for standard 2.5" x 10" filter cartridges. An excellent choice for whole-house, well water, commercial, and other water filtration applications where you want the strength and durability of stainless steel instead of a conventional plastic filter housing.
The housing, head, and mounting bracket are constructed of high-quality 304 stainless steel. With 1" inlet and outlet connections, a maximum working pressure of 300 PSI, and a maximum temperature rating of 207°F, this housing is built for years of dependable service.
Use it with a wide variety of standard 2.5" x 10" sediment, carbon, specialty, and other water filter cartridges.
Features & Specifications
- Heavy-duty stainless steel water filter housing
- High-quality 304 stainless steel construction
- Fits standard 2.5" x 10" water filter cartridges
- 1" inlet and outlet connections
- Maximum pressure: 300 PSI
- Maximum temperature: 207°F

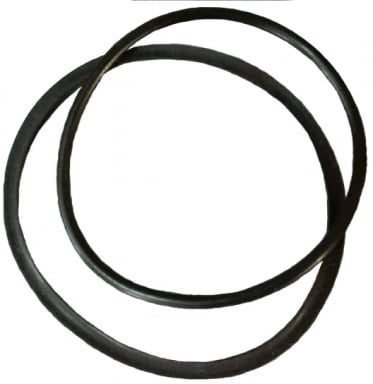

- EPDM O-ring
- 1/4" NPT drain port with plug
- Stainless steel mounting bracket included

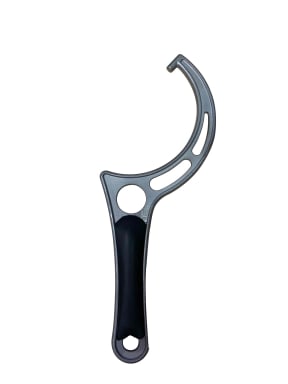

- Stainless steel rod/key for opening the housing included
- Weight: 2.8 lbs.
- Durable alternative to standard plastic filter housings
- NSF/ANSI Standard 42 certified
What's Included
- 10" stainless steel filter housing and head
- EPDM O-ring
- Stainless steel mounting bracket
- Stainless steel housing opening rod/key
- 1/4" NPT drain plug
See Our Complete Line of 2.5" x 10" Filter Cartridges

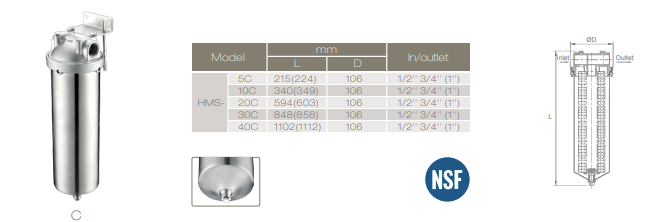

Specifications
| Overall Height (L) | 13⅝″ (13.6″) |
| Body OD (D) | 4-3/16″ (4.17″) |
| Cartridge Length | 10″ |
| Cartridge OD | 2½″ |
| Inlet / Outlet | 1″ NPT (female) |
| Drain Port | ¼″ NPT |
| Weight | 4.1 lb |
| Overall Height (L) | 346 mm |
| Body OD (D) | 106 mm |
| Cartridge Length | 254 mm |
| Cartridge OD | 63.5 mm |
| Inlet / Outlet | 1″ NPT (female) |
| Drain Port | 6.35 mm NPT |
| Weight | 1.85 kg |
| Max Working Pressure | 300 PSI / 20.7 bar |
| Max Working Temperature | 207°F / 97°C |
| Certification | NSF/ANSI 42 |
| Head, Lock Ring & Sump | AISI 304 Stainless Steel |
| O-Ring | Silicone / EPDM |
| Cartridge Compatibility | 10″ × 2.5″ DOE (Double Open End) |
| Housing Assembly | 304 SS head, lock ring & sump |
| Mounting Bracket | Stainless steel wall-mount bracket & hardware |
| Wrench | Stainless steel sump wrench rod |
| Drain Port | ¼″ NPT plug (pre-installed) |
Note: Filter cartridge not included. Compatible with any standard 10″ × 2.5″ DOE cartridge. For replacement O-rings or cartridges, call us at 888-600-5426.
