Specifications

• CWS Ozone Contact Mixing Tanks work great for ozone retention and off-gassing!
• Water enters at bottom and is distributed and rapidly mixed inside tank giving vital contact time to ozone gas under pressure.
• Bottom drain makes flushing and rinsing out sediment fast and easy.
• Pipe size is 2" NPT in and out with inner 1" distributor tube, all in Schedule 80 PVC.
• Unlike other contact tanks rated for 75 PSI max, this tank is rated for 125 PSI.
• Heavier duty, longer lasting.
• Get much better mass-traer of ozone gas into water.

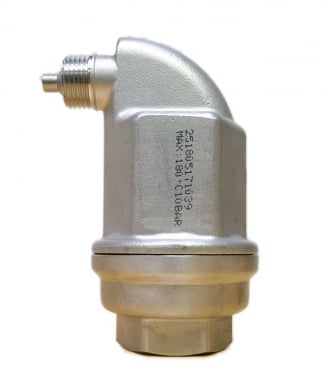

• Remove excess air and gasses with the automatic stainless steel ozone off-gas vent.
• These lightweight seamless totally non-corrosive retention tanks are ideal for new and replacement installation where longest life is desired.
• 100% non-metallic polymer materials.
• Impervious to chemical attack.
• Seamless one-piece inner shell, certified.
• No vulnerable interior tank coating.
• 125 psig operating pressure.
• Drain is easy to install using PVC or stainless steel ball valves.



Frequently Asked Questions

• Question: What size should I order for oxidizing iron, odors or for mixing?
• Answer: For most residential applications where you are injecting chlorine or peroxide or other chemicals before your filtration system, the 48 gallon tank works well.
• Question: What size should I get if I wish to disinfect water?
• Answer: This will depend on the pH and the concentration ozone you are injecting, but generally you want 5 to 10 minutes of contact time, so a larger 80 gallon or 125 gallon is recommended.

Manufacturer: CWS

Manufacturer #: T2002000
