Pro-OX Lite Iron Filter 7500-REV4 2.5 CF 13x54

Thumbnail Filmstrip of Pro-OX Lite Iron Filter 7500-REV4 2.5 CF 13x54 Images

    Free Fast Shipping

    In the Continental U.S.

    Water Experts

    WQA Certified Technicians

    Customer Satisfaction

    6-Month Guarantee

    Pro-OX Lite Iron Filter 7500-REV4 2.5 CF 13x54

    Purchase Pro-OX Lite Iron Filter 7500-REV4 2.5 CF 13x54

    Code: FE013870

    Our Price

    $1,995.00

    In Stock!



    Frequently Bought Together

    Price Total

    $0.00

    • Description

    • specs

    • warranty

    • Info

    • Documents

    Description

    Pro-OX Lite 7500-Rev4 Advanced Iron Filter Systems Remove Iron and Manganese from Well Water

  • Pro-OX Lite 7500-Rev4 iron filters are a robust system for removing iron, rust, and sediment from well water using Pro-OX Lite filter media and advanced cont
  • Corrosion Proof Ceramic disc auto backwash valve lasts years longer than standard piston-type control valves and can backwash over 150,000 cycles
  • Pro-OX Lite: lightweight manganese dioxide filter media (12.5% MnO2), made in Texas with NSF/ANSI 61-certified Pyrolox Advantage media.
  • The media works down to pH 6.2; we recommend pH 7.0 or higher for best results.
  • High iron needs careful design. Send us your water test, and we'll build the right system around your water and how you use it. We recommend this system for up to 5 ppm iron. Higher removal rates are possible depending on water chemistry. With the AIR option, we recommend this system for up to 8 ppm iron. With the Ozone option, we recommend this system for up to 10 ppm iron, plus sulfur odor and iron bacteria.
  • Optional: AIR upgrade (above) or chlorine. Considering hydrogen peroxide for sulfur odor? We recommend a contact tank after the peroxide injection, then a catalytic carbon filter ahead of the iron filter to remove leftover peroxide.
  • Backwashes are based on the time (days of the week) or gallons used. More efficient backwashes that use less water.
  • Automatic program recall after power outages and maximum day regeneration functions
  • Exceptional High Flow Rate with noticeable noise reduction during regeneration.
  • NSF-certified, one-piece, seamless poly filter tank for long life
  • Voltage 110v-230V Power Adapter. Control valve 12VDC. Uses less than 20 watts of power







    • Frequently Asked Questions:

    What is the difference Pro-OX filter media and Pro-OX Lite filter media?

    Pro-OX filter media is about 80% manganese dioxide (MnO2), the active compound in the naturally mined filter media. Pro-OX is imported.

      Pro-OX solid granular naturally mined media is also a good choice; due to its heavier weight it needs a higher backwash flow rate than Pro-OX Lite.



    Why would I need the optional Rusco spindown prefilter?

    The spindown filter will remove any sand or grit that may be in your well water and protect the iron filter. Even though it is not affected by sand like other piston and seal type control valves, it is good to keep sand out of your Pro-OX iron filter.

    Another advantage is that it can be used to sanitize your Pro-OX iron filter with chlorine bleach if you have iron bacteria.  By adding a cup of bleach once a year to the spindown filter, and turning the water back on, the Pro-OX media can be cleaned and sanitized. It only takes a few minutes and no chlorine gets in the house, as the filter is then put into backwash after sanitizing.

    Can I use the optional air charger kit?

    Yes. The Air Charger Kit and the Ozone upgrade are both available on this size (choose them in the upgrade option above).

    Why use the optional ozone generator?

    The optional ozone upgrade allows ozone gas to be injected in the air cycle rather than just air.  This helps reduce iron and sulfur bacteria and provides much higher levels of oxidation that helps remove sulfur odor and helps the Pro-OX filter media remove higher levels of iron and manganese.  The powerful ozone generator includes a built-in air dryer for long life and produces 1 gram of higher purity ozone per hour.

    Can I install this system myself or do I need a plumber?

    Most of our customers do install themselves, however it is easy for any plumber or handyman to install. Ordering the optional flex lines makes it very easy to hook up to your piping.

    What maintenance is required?

    If you use the optional air charger kit, the air injector will need to be cleaned once or twice a year.  This takes about 10 minutes and requires no special tools. There is no other maintenance required.

    What if I don't use the air charger option, what maintenance is required?

    There is little or no maintenance required.  If your water has iron bacteria you can add some chlorine bleach in the optional spindown filter and turn the water back on and clean the Pro-OX media with chlorine, once or twice a year. This will remove any iron bacteria film and restore the Pro-OX media.  Many customers however go years with no maintenance.   Customers report many years of service, and the media is easy to replace.

    Will this affect my water pressure?

    No. The pressure drop at maximum flow rate is around 10 PSI.  At regular flow rates such as used in the home, the pressure drop is 1 or 2 PSI and is not noticeable.

    What does Backwash Flow Rate Mean?

    Your well produces a maximum amount of gpm. Many wells are less than 10 gpm, and you size the filter to match your available flow rate.

    Flow Rate Calculator If you have a submersible pump with a pressure tank and switch, use this link to find your available flow rate.

    I have questions, can I get help when ordering or when installing it?

    Yes, we welcome your questions!  We have a team of experienced water treatment specialists with many years of experience standing by Monday - Friday. Please call us or email us at support@cleanwaterstore.com

    Specifications

    Installation Guides

    Sizing Guide

    ModelBathroomsPeak flow (GPM)Continuous flow (GPM)Backwash Flow Rate (well must supply)Dimensions
    0.75 CF1–263.55 GPMDiameter 8" x Height 50.1"
    1.0 CF2–384.47 GPMDiameter 9" x Height 54.4"
    1.0 CF short2–384.412 GPMDiameter 13" x Height 36.5" (short tank)
    1.5 CF3–4105.57 GPMDiameter 10" x Height 60.7"
    2.0 CF3–5147.910 GPMDiameter 12" x Height 58.6"
    2.5 CF4–6179.212 GPMDiameter 13" x Height 60.5"

    Peak vs. continuous flow: Peak flow is what the filter handles in normal home use, where water runs in bursts (showers, laundry, faucets). Our bathroom ranges come from systems we've installed in real homes. Continuous flow is for long, steady draws, like filling a storage tank, irrigation, or running water for hours. If that's your use, size to the continuous flow, or call us with your water test.

    Backwash Flow Rate: your well must supply at least this many GPM. Many wells make less than 10 GPM; size the filter to your well. Flow Rate Calculator

    Short tank (13x30): for low ceilings; needs 12 GPM to backwash.

    Have Questions? Call 888-600-5426 and speak to one of our certified water treatment technicians for technical help or if you have questions about sizing or flow rates.

    Recommended use: High iron needs careful design. Send us your water test, and we'll build the right system around your water and how you use it. We recommend this system for up to 5 ppm iron. Higher removal rates are possible depending on water chemistry. With the AIR option, we recommend this system for up to 8 ppm iron. With the Ozone option, we recommend this system for up to 10 ppm iron, plus sulfur odor and iron bacteria.

    The media works down to pH 6.2; we recommend pH 7.0 or higher for best results.

    Manganese removal: when manganese is present, we recommend a chlorine feed. A chlorine feed with a contact/retention tank allowing 30 seconds of time after the chlorine has been injected, followed by the Pro-OX filter systems does a GREAT job on removing manganese. A carbon filter can be used after the Pro-OX system to remove any residual chlorine, so you get all the benefits of chlorination without having any chlorine in the house water.


    Warranty

    Warranty:

  • Lifetime Warranty on the filter tanks.
  • 5 Year Warranty on the control valve.
  • See our Return Policy Here

    Info

    Includes:

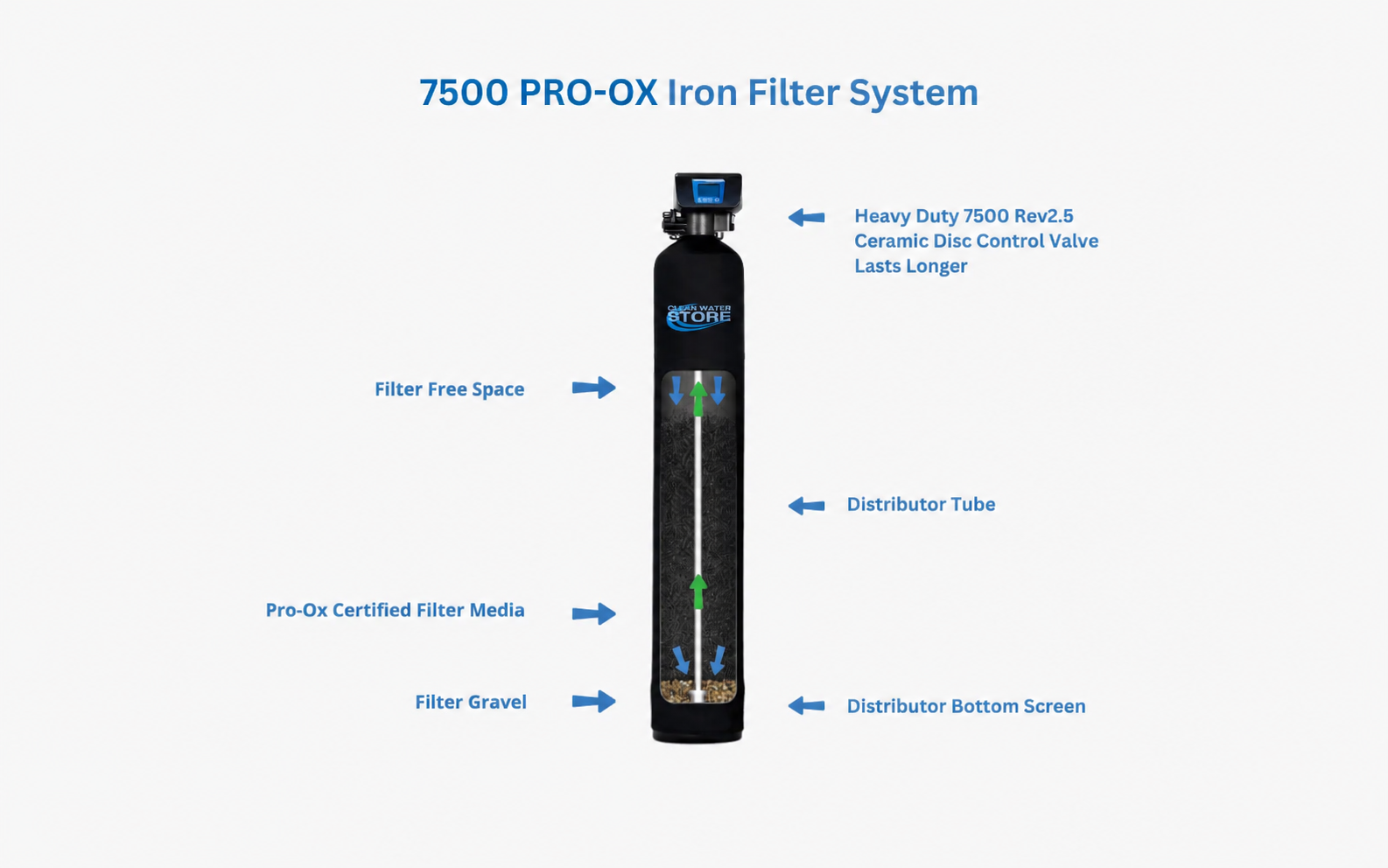

  • Pro-OX Lite iron filter media, bottom gravel.
  • Heavy-Duty 7500-Rev4 ceramic disc control valve
  • NSF-certified filter tank,
  • Distributor tube and bottom basket
  • Bypass valve with 1" pipe connectors

    • Advanced Features:

  • Ceramic disc control valve needs very little routine maintenance, unlike piston-and-seal valves
  • Backwashes based on gallons used and/or days of the week
  • 4 languages on the display if needed besides default English setting
  • Easy to use full port bypass valve won't cut back on flow and pressure
  • Keeps track of time and settings even in a power failure with built-in battery included
  • Optional powerful ozone generator produces 1 gram an hour to kill iron bacteria and increase capacity of sulfur, iron and manganese removal.

    • Satisfaction Guarantee: Complete water treatment systems can be returned within 6 months — even if used — if you're not satisfied. Parts can be returned unused in original packaging within 90 days (25% restocking fee). Return shipping is the customer's responsibility. See full return policy.

  • Lifetime Warranty on the filter tanks. All tanks are Certified & top quality.
  • 5-year control valve warranty; ceramic components guaranteed for life by the valve manufacturer.

    • I have questions, can I get help when ordering or when installing it?

    Yes, we welcome your questions!  We have a team of experienced water treatment specialists with many years of experience standing by Monday - Friday.

    Please call us or email us at support@cleanwaterstore.com






    Documents

    7500-Rev4 Pro-OX Lite Installation Guide (PDF)

    7500-Rev4 Air Upgrade Installation Guide (PDF)

    Pro-OX Lite Media Technical Manual (PDF)
