Sizing Guide

Model	Number of Bathrooms in Home	Flow Rate	Backwash Flow Rate	Iron / Manganese Removal	Dimensions
0.75 CF	1 - 2	7 GPM	4 GPM	10 PPM / 2 PPM	Diameter: 8" Height: 52.5"
1.0 CF	1 - 2	8 GPM	5 GPM	10 PPM / 2 PPM	Diameter: 9" Height: 56.5"
1.5 CF	1 - 2	10 GPM	5 GPM	10 PPM / 2 PPM	Diameter: 10" Height: 62.5"
2.0 CF	2 - 3	12 GPM	8 GPM	10 PPM / 2 PPM	Diameter: 12" Height: 60.5"
2.5 CF	2 - 3	14 GPM	10 GPM	10 PPM / 2 PPM	Diameter: 13" Height: 62.5"

Benefits

• Powerful iron filtration system using potassium permanganate powder (sold separately)
• Oxidizes and removes iron, manganese.
• Excellent performance on both chlorinated and non-chlorinated water
• Filter tank is NSF certified one piece seamless polyester construction for long life.
• Fully adjustable backwash and rinse cycles to save water and allow maximized performance
• Time-tested, hydraulically balanced backwash piston seal and spacers. Easy to change and service.
• 5900-BT heavy duty Blue Tooth enabled backwash control valve features fully adjustable backwash and rinse cycles, saving water and allowing maximized performance.
• Monitor flow rates, history of water usage and settings from your smart phone if desired.
• Voltage 110v-230V Power Adapter. Control valve 12VDC. Uses less than 20 watts of power.
• Max pressure recommended is 100 psi.
• Maximum water temperature recommended 100F.
• Non-corrosive high-tech material construction
• User friendly LCD display, showing time of day, regeneration mode, and gallons remaining
• Legacy View Bluetooth enabled 5900-BT Electronic Control Valve for advanced water usage & flow monitoring from your smart phone!

Includes

• Greensand-Plus filter media
• Heavy-Duty 5900-BT control valve

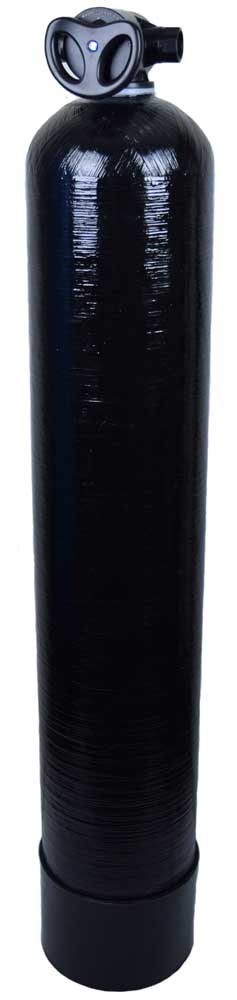

• NSF certified filter tank
• Potassium Permanganate tank
