Proportional Flow Chlorinators

Choose 110V or 220V. All in Stock

Proportional Flow Chlorinator Sale! Easy to Install

No electrician required. Plugs into wall outlet. Chlorine Test Kit included for a limited time.

Our Well Water Chlorination Systems Last Longer and Outperform Stenner, Chem-Tech, Pulsafeeder and LMI!

4 Items

Chlorinator Well Water Package J-PRO-38 with Solution Tank
$825.00

Carbon Backwash Filter 5900-BT 1.0 CF 9x48
$1,500.00

Carbon Backwash Filter 5900-BT 2.0 CF 12x52
$1,732.00

Contact Retention Tank 1054 15 Gal. 1" In-Out
$439.00

Sizing Guide

Flow Rate Comparison Chart in Gallons Per Minute
Model	Minimum Flow Rate	Maximum Flow Rate
3/4" Model	0.5	20
1" Model	1	31
1-1/2" Model	1	50

Features

Easy Installation! No wiring needed. Plug into any standard wall outlet (available in 110V or 220V — choose your voltage when ordering), and when there is flow, the J-PRO-38 Metering Pump will instantly and accurately inject the precise amount of chlorine (or other chemicals) based on the flow rate of the water.

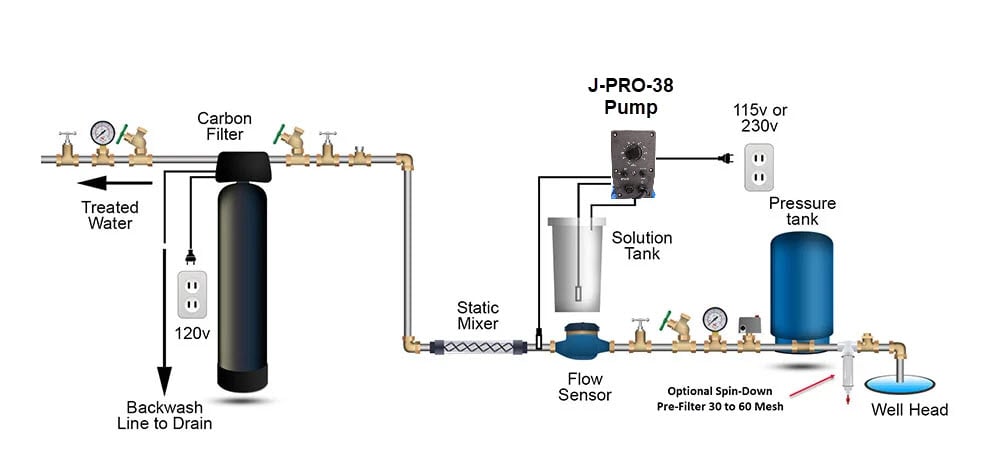

Package includes the J-PRO-38 Electronic Digital Pulse Metering Pump (110V or 220V — select your voltage at checkout), a 3/4", 1", or 1-1/2" CWS Lead-Free Flow Sensor with cable and unions, a heavy-duty solution tank, injection check valve, tubing, and fittings.

Our J-PRO-38 proportional-feed chlorinators inject chlorine based on water flow rate to achieve accurate chlorine residuals with the least amount of maintenance. The system injects the precise amount of chlorine required based on water flow rate — automatically pumping more or less chlorine as demand changes.

Versatile Chlorinator Works for a Wide Range of Conditions and Wells:

CWS Lead-Free heavy-duty nylon engineered plastic flowmeter with unions. Operates accurately down to 1/2 to 1 gallon per minute flow rate.
Good for chlorinating well water flow rates from 1 to 89 gallons per minute.
Metering pump can deliver up to 38 gallons (144 liters) of chlorine solution per day and is easily adjustable to achieve just the right chlorine residual.
Works for line pressures up to 100 PSI.
Dimensions: 15-gallon model: 14.5" wide x 24.5" height including pump. 35-gallon model: 18.5" wide x 34" height including pump.
Dosage is controlled by the flow sensor, the stroke adjustment knob, and the flow rate of water. A manual override switch is also included, allowing you to run the pump manually independent of flow.
De-gassing vent built in — makes the pump ideal for chlorination use.
Unlike Stenner-style peristaltic pumps: no pump tube failures, no rollers to go bad, needs less service, and designed for continuous duty.
Uses regular household bleach (5% sodium hypochlorite) or liquid pool chlorine (12% sodium hypochlorite).
Heavy-duty metering pump systems designed to last for many years with minimal maintenance.
Pump easily mounts on top of the tank or on a wall.
Primes super fast and won't lose its prime.
Complete system includes chlorinator pump, solution tank, injection check valve, tubing, and fittings.
Easy and fast to install!
Available in 110V or 220V — select your voltage when ordering. Uses only 22 watts of power when operating.

Free Expert Technical Setup and Support

Since 1986 we have installed many hundreds of chlorination systems worldwide. We can offer you expert advice on the exact type of chlorine solution to use, how much to use, and what settings to use with your new chlorinator. These pumps are the easiest and most accurate chlorinator pumps available on the market today.

Loaded with features only found in much more expensive industrial metering pumps, our J-PRO-38 Metering Pump makes chlorine and other chemical injection fast and accurate. Our easy-to-use installation guide will walk you through every step, but if you need help or have questions, we are just a phone call or email away.

Each System Includes

J-PRO-38 Home Well Water Digital Pulse Chlorinator Pump with 10 or 25-gallon heavy-duty polyethylene solution tank.
CWS Lead-Free heavy-duty nylon engineered plastic flow meter with unions and cable.
Tubing and fittings to connect pump to injection check valve.
Injection check valve, 1/2" NPT.
Easy-to-read manual.
Professional tech support from WQA Water Specialists if you have any questions.

Frequently Asked Questions

What is the output adjustment range of the J-PRO-38?

The J-PRO-38 has a stroke length adjustment knob that goes from 0 to 100%. We recommend operating between 10% and 100% of rated output. Here is what those settings mean in real numbers:

Stroke rate: 180 strokes per minute
Output per stroke at 100%: approximately 0.56 cc (mL) per stroke
Maximum output: 100 mL per minute / 6 liters per hour / 144 liters (38 gallons) per day
At 10% (minimum recommended): approximately 0.056 cc per stroke / 10 mL per minute / 3.8 gallons per day

This wide range gives you precise control to dial in exactly the right chlorine dose for your well, flow rate, and water chemistry.

Is this pump proportional — does it adjust automatically based on flow rate?

Yes. The J-PRO-38 is a proportional-feed chlorinator. The flow sensor detects how much water is flowing and signals the pump to inject chlorine in direct proportion to that flow. When demand is high, the pump injects more; when flow slows, it injects less. This keeps your chlorine residual consistent regardless of how much water you are using — unlike timer-based systems that inject at a fixed rate whether or not water is flowing.

How do I set the output to get the right chlorine residual?

Start with a water test to determine your iron level, bacteria count, and any other contaminants you are treating. A good target for most residential wells is 0.5–1.0 ppm free chlorine residual measured after the contact tank. Begin with the stroke knob set to 100% to prime the pump, then dial it back to an initial setting of 40–50% for normal operation. From there, adjust your chlorine solution strength (bleach concentration) accordingly to achieve your desired residual. Our technical team can walk you through exact settings based on your flow rate, water chemistry, and bleach concentration — just call or email us with your water test results.

What type of chlorine can I use?

Do not use laundry bleach for potable water applications. We recommend 10% or 12% sodium hypochlorite (pool bleach with no additives) or 70% calcium hypochlorite powdered bleach diluted with water.

Why is this better than a Stenner peristaltic pump?

Stenner-style peristaltic pumps use a rubber tube that gets squeezed by rollers to move fluid. Over time that tube hardens, cracks, and fails — requiring replacement every year or two. The J-PRO-38 uses a diaphragm-style pump head with no tube to fail and no rollers to wear out. It is designed for continuous duty, needs less service, and typically lasts many years longer than a peristaltic pump under the same conditions.

What flow rates does the J-PRO-38 work with?

The system works with well water flow rates from 1 to 89 gallons per minute depending on which flow sensor size you choose (3/4", 1", or 1-1/2"). The flow sensor reads accurately down to as low as 0.5 GPM, making it suitable for low-yield wells as well as higher-output systems.

Do I need an electrician to install this?

No. The J-PRO-38 plugs into any standard wall outlet — no hardwiring required. It is available in 110V or 220V, so simply choose the voltage that matches your outlet when ordering. The system uses only 22 watts when operating, so it will not noticeably affect your electric bill. Most homeowners can complete the full installation themselves using our step-by-step guide, and our technical team is available by phone or email if you have any questions along the way.
