How To Treat Acid Well Water
On private water systems, one of the most common causes of pipe and fixture corrosion is from low pH, which can be defined as acidic water with a pH of less than 7.0 pH. Signs of acid water are corrosion of fixtures, blue staining (from copper pipes) or rust staining (from iron pipes).
Common causes for acidic water are acid rainfall due to atmospheric carbon dioxide and other airborne pollutants, runoff from mining spoils, and decomposition of plant materials.
Corrosion is a natural process involving chemical or electrical degradation of metals in contact with water.
Acidic water with pH values in the range of 6 to 7 is more corrosive to the metals used in plumbing systems than alkaline water. Both ground waters (wells) and surface waters (such as spring water or creeks) can be acidic.
Acidic waters are typically low in buffering calcium minerals, but are high in dissolved carbon?dioxide gas, which can cause the low pH or acidity.
Calcite neutralizer tanks with natural crushed and screened pure calcium carbonate easily neutralize acidic waters from 6.0 to 6.9. Below 6.0 a blend of calcite and ‘CorosexÂ©” is recommended.
Common systems used to treat low pH:
- Calcite Neutralizer
- Calcite & Corosex Blend Neutralizer
- Upflow Neutralizer
- Soda Ash Feed Pump Injection System
Questions to Ask When Choosing a Neutralizer:
- What is the pH, hardness, total dissolved solids and alkalinity
of my water?
- What is the flow rate of my well water?
- Should I use a calcite neutralizer or soda ash feeder to correct
Test Your Water
Test your water for:
- Hardness (calcium carbonate)
- Total Dissolved Solids
If you are experiencing rust staining, test for iron in the untreated well water to determine if the iron is from the well or from inside pipes or water heater.
If you are seeing blue or blue-green stains a simple copper test can be done on the untreated water to see if there is copper occurring naturally in the ground water. This is very unusual and most cases of copper staining are from corrosion of the copper piping.
Langelier Saturation Index
Using the above test results for pH, alkalinity, calcium carbonate hardness, and total dissolved solids, enter the water temperature and these values into a Langlelier Saturation Index calculator (easy to find online) and see if the water is corrosive or not. A negative number of less than 0 indicates the water is corrosive. Generally the lower the pH, the lower the hardness and alkalinity, and the higher the total dissolved solids will mean the water is more corrosive.
Perform a ‘”Toilet Tank Inspection”
Unless your toilet tank is new or has recently been cleaned your toilet flush tank can be a wealth of useful water quality information! Simply lift the cover and look in. If you see blue stains, or blue green deposits this indicates copper pipe corrosion. If you see rust stains or rust deposits this can indicate iron pipe corrosion or there may be iron naturally occurring your well water.
A toilet tank check combined with a water analysis gives you a good idea of what is occurring in your pipes and fixtures.
Check for Pipe Corrosion and Scale Build-up
Unless your home is new, it is important to check for pipe corrosion scale buildup in the piping. Fortunately this is not difficult to do by using one of the following methods:
- Check for signs of blue stains in fixtures, blue stains in toilet tanks, which can indicate copper corrosion, and/or test water for copper.
- If you have galvanized iron pipe, look for signs of rust and rustcolored scale in the toilet flush tank.
- If possible, inspect the exterior of pipes and valves, to see if you see any signs of pinhole leaks or corrosion byproducts which can be crusty, bluish, white or salty looking or rusty. If you are having any plumbing work done on your house, inspect any sections of the pipes that have been cut to see if there is any scale build?up or signs of corrosion.
Identify Pipe Sizes
It is useful to know the size of your incoming pipes. For instance, say you decide you want to in stall calcite neutralizer for your house. They come in different pipe sizes, such as 3/4″ pipe, 1″ pipe etc. Generally, you want to make certain you get a system that will not restrict the water flow or pressure, so if you have a 1″ pipe, you would want a calcite
neutralizer that has 1″ pipe connectors. Knowing what size piping you have solves this problem.
It is easy to check the size of your pipes. First, check on the pipe itself, often it will be labeled or written on the side. If not, the string method which measures the circumference is probably the best way to determine
your pipe size. Circumference is the distance it takes to go around the pipe once.
Remove any insulation from the pipe. Using a piece of string about 6″ long (or a cloth tape measure) wrap the string around the pipe once and measure to the nearest 1/8 of an inch. Once you have found the circumference, use the chart below to find your pipe or tube size.
Determine Your Well Pump Flow Rate
Your well pump can pump water up to a certain maximum flow rate, in gallons per minute. For example say you could fill a 5 gallon in 1 minute. This is a flow rate of 5 gallons per minute or 5 GPM. If the water filled up a 5 gallon bucket in 30 seconds, the flow rate would be 10 GPM. Knowing how many gallons per minute your water system can pump is critical to picking the right type of water treatment system, and it is easy to determine. This method works for most well pumps. If your pump turns on at one pressure (typically 30 or 40 PSI) and off at a higher pressure (usually 50 or 60 PSI) this method will work for you.
It is easy! All you need is a 1 or 5 gallon bucket and a watch or clock. It takes just a few minutes:
- 1. Open any hose bib or faucet until pump turns on.
- 2. Close hose bib or faucet and let pump fill up pressure tank until it turns off.
- 3. Using a 1 or 5 gal. bucket, open faucet, collect and measure all water discharged until pump turns on.
- 4. When pump turns on, immediately close faucet and start timing pump cycle*
- 5. When pump turns off, record pump cycle time to refill pressure tank in seconds.
- 6. Divide the number of gallons collected in Step 3 by the number of seconds in Step 5.
- 7. Multiply the answer from Step 6 by 60.
- 8. The answer in Step 7 is the average pumping capacity of the pump in gallons per minute (GPM).

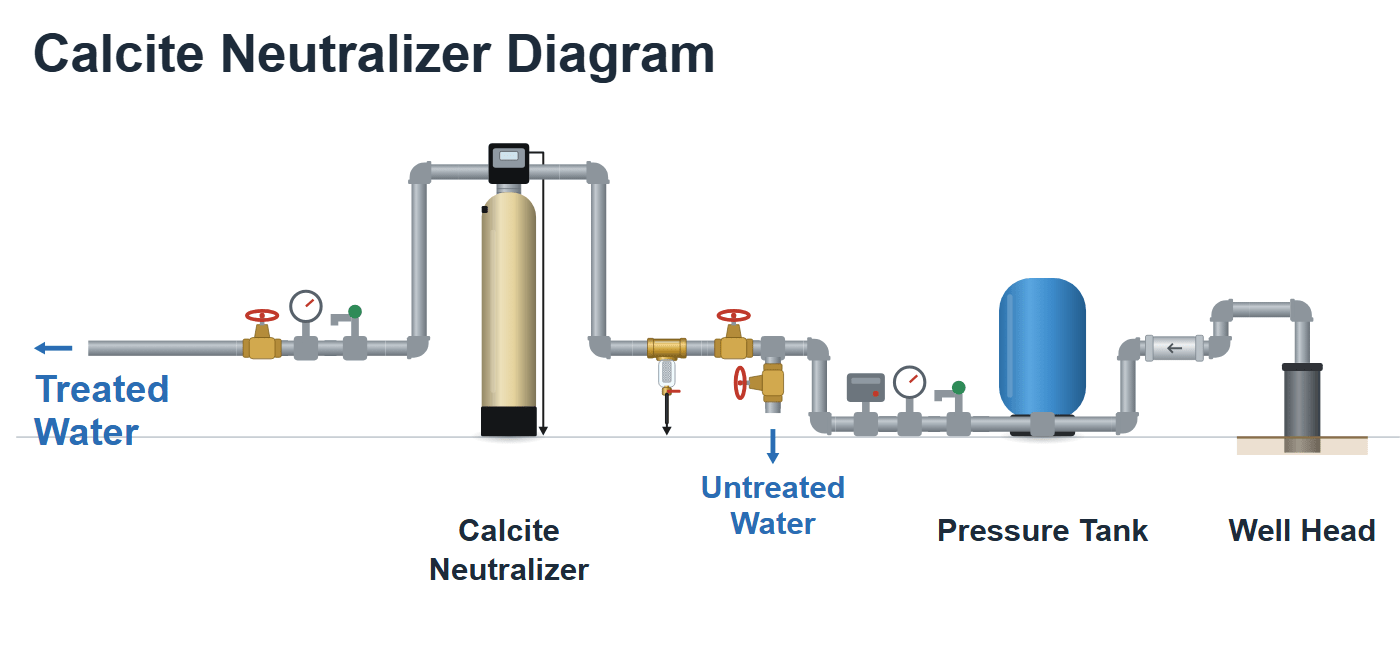

Calcite & Calcite-Corosex Blend Neutralizers
One of the most convenient methods to raise pH, hardness and alkalinity is to use a calcite neutralizer filter. These filters will typically raise the pH of the water to 7.0 to 8.0 and add 30 to 100 ppm
In neutralizer filters, acidic waters slowly dissolve the calcium and magnesium media on contact as the water flows through the filter, raising the pH of the water and increasing the alkalinity. This eliminates the effects of corrosive water chemistries and can help to prevent corrosion of piping and fixtures.
The size of the system is directly proportional to the flow rate of the water, in gallons per minute. The higher the flow rate, the larger the system required.
Both upflow and downflow neutralizers are used, but generally downflow neutralizers that have a periodic automatic backwash are much easier to maintain and tend to work better for residential well water systems.
Neutralizers Vs Soda Ash Feeder
If the pH of the water is 5.0 to 6.9 and the calcium hardness is less than 150 ppm, generally the calcite neutralizers are preferable for most homeowners. A once per year addition of the calcite is all that is typically required. The soda ash feeders require new solution added every 3â6 months.
However, if the pH is 5.0 or less, a soda ash feeder is preferable because a calcite neutralizer might not raise the pH to the 7.0 on a consistent basis. When the pH is less than 5.0, the amount of calcium and magnesium required from a calcite neutralizer might make the water too high in hardness, requiring a water softener, so a soda ash feeder works better.
Q. Will calcite (or calciteâblend) neutralizers make the water so hard that a water softener is needed?
A. The calcite and calcite-blend neutralizers work by adding calcium to the water, and it will increase the calcium hardness of the water, making the water ‘harder’. However, most acidic well water is soft to begin with, and after passing through the neutralizer, will be harder, but shall not hard enough to warrant a water softener.
Generally if the water is less than 170 mg/L or 10 grains per gallon, most customers can avoid having to use a water softener. If your water is 3 grains/gallon to begin with, after the neutralizer it might be 5 to 7 grains per gallon, as the neutralizers will add 3-4 grains per gallon on average. You can always add a water softener later if you find you want one, but we generally do not recommend a water softener be installed. If you are having white spotting on fixtures and you want a water softener, you could install them both at the same time, but its better for the elimination of copper corrosion, if you wait 3-6 months to give the neutralizer a chance to stop the copper corrosion before adding the water softener.
Soda Ash Feeders
Metering pumps are used to inject a small amount of soda ash (sodium carbonate) into the water, usually in conjunction with a contact tank. For best results, allow a few minutes of mixing time after soda ash solution has been injected. Often a small contact pressure tank, also called a retention tank, is used. For home wells the soda ash metering pumps are wired to turn on and start pumping soda ash solution, when the well pump turns on and off. In this case, the injection point of the soda ash solution is before the well pressure tank.
If the soda ash injection point is after the pressure tank, a proportional system is used. A flow meter controls the metering pump and controls the metering pump proportional to the flow of the water.
Soda ash is bought dry, usually in 50 lb bags and mixed with soft or pure water in the solution tank. When a saturated solution is achieved (approximately 1 pound per 5 gallons of water), a solution of between 50 and 500 ppm are injected, depending on the pH, alkalinity and flow rate of the water.
Soda Ash Injection controlled by existing well pressure switch. Most common method used. Lowest cost.
- Neutralizes pH from 4.0 to 6.8 range up to 7.0 to 8.0 range
- Fully adjustable
- Precisely control pH
- No extra calcium hardness added to water
Backwashing calcite neutralizer. The backwash keeps the calcite free of sediment and from getting solid and hard.
Simple up-flow neutralizer does not use backwash control. May channel or solidify if not properly maintained.
Section of corroded copper pipe. This customer had pinhole leaks in the copper piping caused by acidic water.
Corroded galvanized pipe nipples from acid water. This water had a pH of 6.2 and required complete replacing of the iron pipes in the home.
Blue water from a plumbing system with corroding copper pipe. Blue stains and blue water are an indication of copper corrosion.
This copper looked fine from the outside. Inside it was being eaten away by the acidic water and eventually sprung pinhole leaks, causing extensive damage to the customers home. We cut away a sectionn of it, above.
Pipe Circumference to
Pipe Size Chart
Copper Pipe or PEX tubing
2.75″ (70mm) = 3/4″ pipe
3.53″ (90mm) = 1″ pipe
4.32″ (110mm) = 1 1/4″ pipe
5.10″ (130mm) = 1 1/2″ pipe
Steel Pipe or PVC Plastic Pipe
3.25″ (83mm) = 3/4″ pipe
4.00″(102mm) = 1″ pipe
5.00″(127mm) = 1 1/4″ pipe
6.00″(152mm) = 1 1/2″ pipe
Flexible Polyethylene Pipe
2.96-3.33″ (75-85mm) = 3/4″ pipe
3.74-4.24″ (95-108mm) = 1″ pipe
4.90-5.57″ (124-141mm) = 1 1/4″ pipe
5.70-6.28″ (145-160mm) = 1 1/2″ pipe
Soda Ash Solution Tank with Metering Pump
Soda Ash Heavyâduty tank with automatic mixer. Keeps
soda ash solution dissolved. Saves time in mixing powder.
Powerful electric mixer mounts on top of heavyduty tank. Runs on a timer or run manually to keep soda ash solution mixed.
Soda Ash Injection controlled by Flow Meter “Proportional Feed”. Allows chlorine injection point to be after pressure tank, or at point of use or entry to home.
Neutralize Acidic Well Water CHEAT SHEET
